Hioki

3280-10, Digital Clamp On Meter

RM 250.00

RM 350.00 -28%
  • Measure the fundamental waveform component using the average rectified method
  • Expanded -25 °C to 65 °C operating temperature range
  • Connect the CT6280 flexible sensor to measure up to 4199 A in thick or paired wires
  • Drop proof design withstands drop from a height of 1 meter


Product Variation


Product Description

Hioki clamp meters are best-in-class measuring devices incorporating Hioki’ s expertise in current sensing technology. The 3280-10F is an average rectifying 1000A AC clamp meter that features a broad operating temperature range of -25°C to 65°C, thin and compact clamp core and optional flexible current sensor that you can attach to let you get into the tightest spots.



A pocket clamp meter that can use flexible sensors

When connected to an optional flexible current sensor, the 3280-10F can be used to measure the current flowing in pairs of wires or in tangled or complexly routed wires around which it was not possible to apply a clamp-on sensor in the past.





Essential for electrical work: A thin card tester that fits in the pocket with all the capabilities of a clamp meter

The 3280-10F delivers all the functionality of a clamp meter and card tester in the form factor of the latter. In addition to current measurement, this single instrument delivers voltage measurement, continuity check, and resistance measurement functionality.





A tough, pocket-size clamp meter with an operating temperature range of -25°C to 65°C

The 3280-10F inherits the drop-proof durability of the previous 3280-10 (making it able to withstand being dropped onto concrete from a height of 1 m) and expands that instrument’s operating temperature range to -25°C to 65°C (from the previous 0°C to 40°C). As a result, it can be used in even harsher environments.



■ Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)

AC Current 41.99 to 1000 A, 3 ranges (50 to 60 Hz, Average rectified),
Basic accuracy: ±1.5 % rdg. ±5 dgt.
DC Voltage 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt.
AC Voltage 4.199 V to 600 V, 4 ranges (45 to 500 Hz, Average rectified),
Basic accuracy: ±1.8 % rdg. ±7 dgt.
Crest factor N/A
Resistance 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt.
Other functions Continuity: Buzzer sounds at 50 Ω ±40 Ω or less, Data hold, Auto power save, Drop-proof from height of 1 meter
Display LCD, max. 4199 dgt., Display refresh rate: 400 ms
Environmental protection IP40 dustproof and waterproof
Power supply Coin type lithium battery (CR2032) ×1, Continuous use 120 hours
Core jaw dia. φ 33 mm (1.30 in)
Dimensions and mass 57 mm (2.24 in) W × 175 mm (6.89 in) H × 16 mm (0.63 in) D, 100 g (3.5 oz)

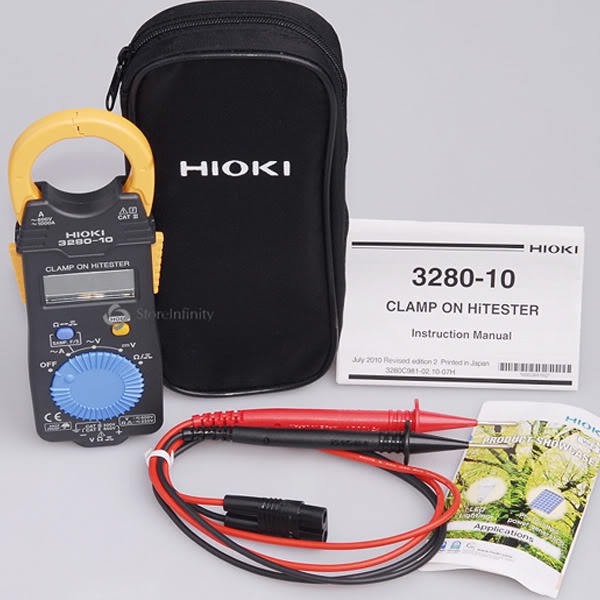

Accessories CARRYING CASE 9398 ×1, TEST LEAD L9208 ×1, Coin type lithium battery (CR2032) ×1, Instruction manual ×1


Specifications
Country Japan
IP Rating 40
Product Category Clamp Meter
