Kyoritsu

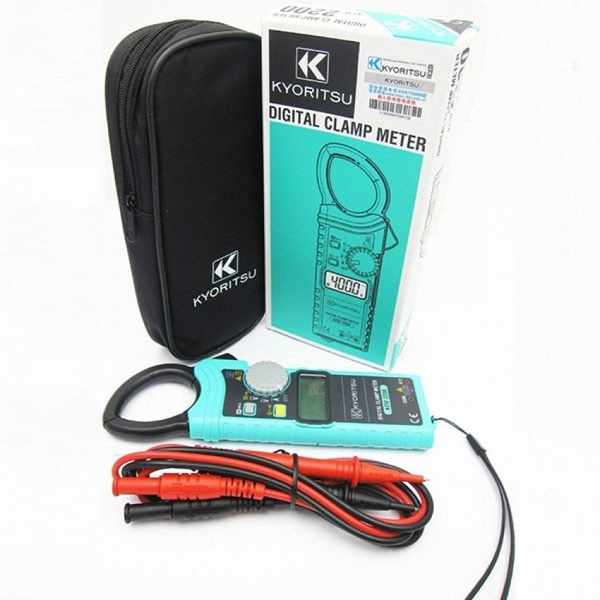

KEW2200, Digital Clamp Meter

RM 270.00

RM 350.00 -23%

• Ultra Slim and lightweight Handy design
• 1000A AC Clamp Meter AC40/400/1000A Auto Range
• Ø33mm Tear Drop Jaw easy to use in tight places
• DMM function ACV, DCV, Ω, Continuity Buzzer
• Fuseless electronic protection on up Ω/ to 600V
• IEC61010-1 Safety Standard
CAT III 600V (AC A) CAT III 300V / CAT II 600V (AC/DC V)



Product Variation


Product Description

AC A 40.00/400.0/1000A (Auto-ranging)
±1.4%rdg±6dgt (50/60Hz)
±1.6%rdg±6dgt (45 - 65Hz)
AC V 4.000/40.00/400.0/600V (Auto-ranging)
±1.8%rdg±7dgt (45 - 65Hz)
±2.3%rdg±8dgt (65 - 500Hz)
DC V 400.0mV/4.000/40.00/400.0/600V (Auto-ranging)
±1.0%rdg±3dgt (*1)
Ω 400.0Ω/4.000/40.00/400.0kΩ/4.000/40.00MΩ (Auto-ranging)
±2.0%rdg±4dgt (0 - 400kΩ)
±4.0%rdg±4dgt (4MΩ)
±8.0%rdg±4dgt (40MΩ)
Continuity buzzer buzzer sounds below 50±30Ω
Conductor size Ø33mm max.
Applicable standards IEC 61010-1
CAT III 600V Pollution degree 2 (AC A),
CAT III 300V / CAT II 600V Pollution degree 2 (AC/DC V)
IEC 61010-031, IEC 61010-2-032, IEC 61326 (EMC)
Power source R03/LR03 (AAA) (1.5V) × 2
*continuous measuring time:
approx. 350 hours (Auto power off: approx. 10 minutes)
Dimensions 190(L) × 68(W) × 20(D)mm
Weight Approx. 120g (including batteries)
Included Accessories 7107A (Test leads), 9160 (Carrying case), R03 (AAA) × 2,
Instruction Manual
Optional Accessories 8008 (Multi-Tran)

(*1)  400.0mV Range : Accuracy is not guaranteed.



Specifications
Country Japan
IP Rating 40
Product Category Clamp Meter
