Uni-T

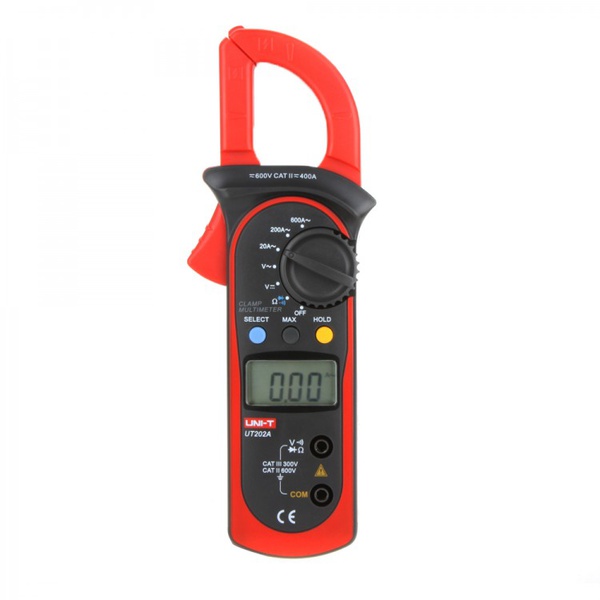

UT202A, Digital Clamp Multimeter

RM 65.00

RM 120.00 -45%
  • Display Count: 2000
  • Manual Range: √
  • Jaw Capacity: 28mm
  • Diode: √
  • Continuity Buzzer: √
  • Low Battery Indication: √
  • Data Hold: √
  • MAX Mode: √
  • MIN Mode: √
  • Input Impedance for DCV: Around 10MΩ


Product Variation


Product Description



Overview

UT202A is a stable, secure, and reliable 3 1/2 digit clamp meter. Whole circuit design to LSI double integral A / D converter as the core, the whole range of overload protection circuit, unique design makes it the superior performance of a dedicated electrical instruments. It can be used to measure the DC voltage, AC current, resistance, diodes, circuit continuity and so on.

FeaturesDisplay Count: 2000Compact size AC clamp meter, up to 600 ampsJaw Capacity: 28mmInput Impedance for DC V: Around 10MωAC/DC voltage, resistance, continuity & diode checkManual Range + Data hold + Maximum/Minimum value measurementContinuity BuzzerLow Battery IndicatorMeasurement update speed 3 times/second, compact and comfortable designCompliance with safety requirements IEC 61010, CAT II 600 V / CAT III 300 VCan be used for AC/DC voltage test, AC current test, electric current resistance, diode test, etc.(PS: CANNOT test DC current)Can be used in places such as factory, school lab, home hobby, machine repairing, etc.






SpecificationModel: UT202AAC Current (A): 20A/200A/600A ±(1.5%+5)AC Voltage (V): 2V/20V/200V/600V ±(1.2%+5)DC Voltage (V): 200mV/2V/20V/200V/600V ±(0.8%+1)Resistance (ω): 200ω/2Kω/20Kω/200Kω/2Mω/20Mω ±(0.8%+3)Display: LCD, max. 1999 digits, 35.6 × 18 mmPower supply: 1x 9V 6F22MAX. Diameter for conductor: φ26 mmProduct Net Weight: 220gProduct Size: 210mm * 75.6mm * 30 mmLCD Size: 35.6mm * 18 mmProduct Color: Red and Grey






Note: Battery is not included



Specifications
Country Hong Kong
IP Rating 40
Product Category Clamp Meter
