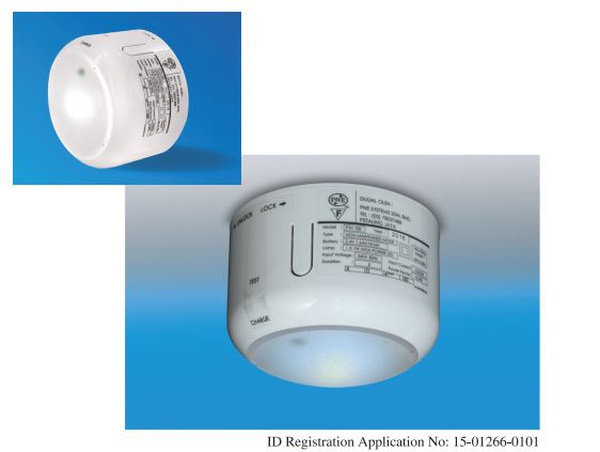

PNE PTH-100 Self-Contained Emergency Luminaire (Escape route lighting device)

RM 54.10

RM 61.45 -12%
  • Non-maintained
  • PC + ABS + UV plastic fire retardant
  • Constant current
  • Green or red LED as charging indicator
  • Equipped with momentary switch to simulate power failure
  • SIRIM MS619 : Part 102 : Sect. 102.22
  • Ms IEC 60598-1 : 2006
  • 16-24 hours
  • 3 hours
  • IP-20


Product Variation


Product Description

PNE Emergency Lighting Luminaires And Exit Lighting  Products
We have a wide range of  superior quality self-contained emergency lighting luminaires, Exit lighting and emergency power packs for various types of lamps. We offer a wide variety of emergency lighting products for industrial, commercial and residential needs.  All our products meet SIRIM MS Standard, are approved by Jabatan Bomba Dan Penyelamat Malaysia and JKR. We are a leading brand with  extensive sales network of stockists and dealers in all  states in  Malaysia.



Mode : Non-maintained
Weight : 260grams
Battery : High temperature rated sealed nickel-cadmiun
Housing : PC + ABS + UV plastic fire retardant
Charger : Constant current
Mounting : Surface mount

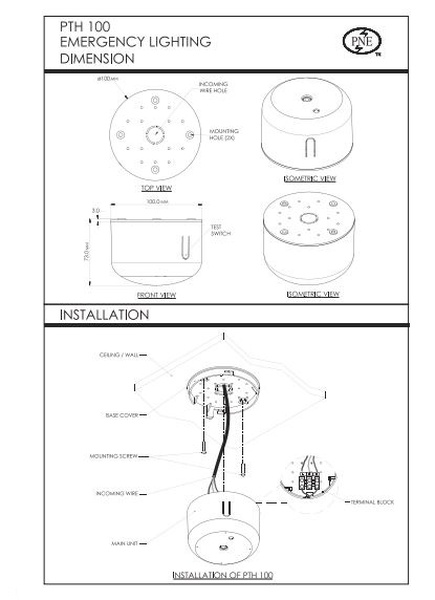

Dimension : 100mm (Dia) x 73mm (Height)
Monitoring : Green or red LED as charging indicator
                       Equipped with momentary switch to simulate power failure
Compliance : SIRIM MS619 : Part 102 : Sect. 102.22
                         Ms IEC 60598-1 : 2006
Light Source : 1 W high power LED
Input Voltage : 240V +/- 10% 50Hz
Recharge Period : 16-24 hours
Back up Duration : 3 hours
Battery Protection : Low voltage cut-off to prevent over discharging
Degree of Protection : IP-20

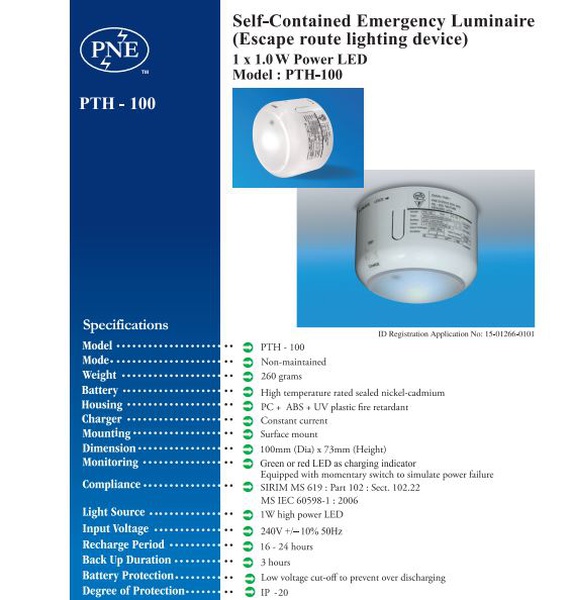

Specifications
Housing Material Plastic fire retardant
Mounting Type Surface Mounted
Monitoring Indictor Green LED
Weight (g) 260
Light Source 1W LED
