Philips

Electronic Transformer ET-E 60

RM 18.35

RM 23.00 -20%
  • 50% power loss saving compared with magnetic transformer
  • SELV compliant
  • Suitable for use with Philips approved leading and trailing edge dimmers


Product Variation


Product Description

General Information

Type Version

-

Lamp Type

LV Halogen

Automatic Restart

Yes

Operating and Electrical

Input Voltage

220 to 240 V

Input Frequency

50 to 60 Hz

Power Factor 100% Load (Nom)

0.9

Mains Voltage Performance (AC)

-10%-+10%

Mains Voltage Safety (AC)

-8%-+6%

Power Losses (Nom)

4 W

Inrush Current Peak (Max)

15 A

Output Voltage

- V

Wiring

Cable Capacity Wires Device To Lamp (Max)

120 nF

Cable Length From Device To Lamp

1.5 m

Wire Striplength

8.0-9.0 mm

Cable Capacity Output Wires To Earth (Max)

120 pF

System characteristics

Rated Ballast-Lamp Power

60 W

Temperature

T-Ambient (Max)

50 °C

T-Ambient (Min)

-20 °C

T-Storage (Max)

80 °C

T-Storage (Min)

-40 °C

T-Case Maximum (Max)

65 °C

Approval and Application

Hum And Noise Level

< 30 dB(A)

Product Data

Full product code

697013372901400

Order product name

ET-E 60 220-240V 50/60Hz

EAN/UPC - Product

6970133729014

Order code

913710031101

Numerator - Quantity Per Pack

1

Numerator - Packs per outer box

48

Material Nr. (12NC)

913710031101

Net Weight (Piece)

0.056 kg

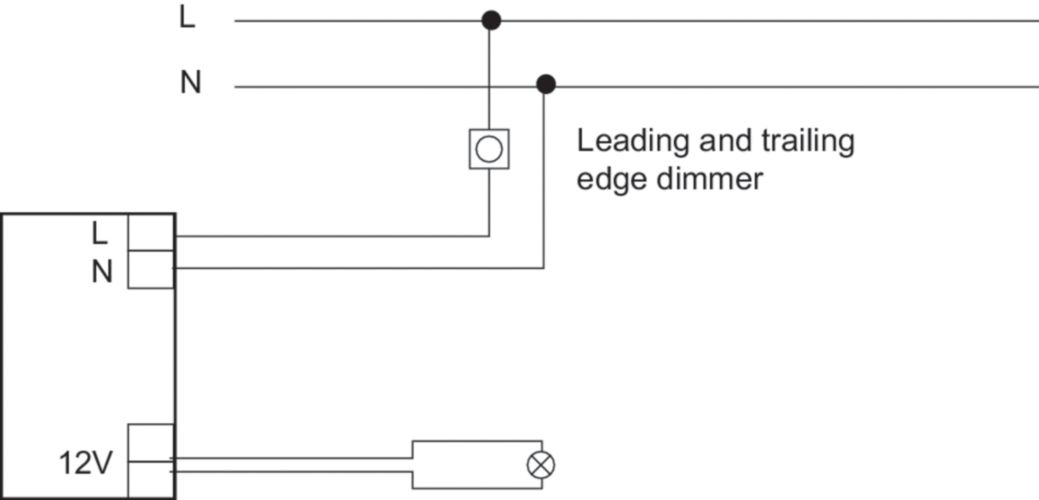

Installation Diagrams

Description                    Description



Specifications
Ballast Lamp Power (W) 60
Power Factor 0.9
Input Voltage (V) 220V - 240V
Input Frequency (Hz) 50 - 60Hz
Supported Lamp Type LV Halogen
