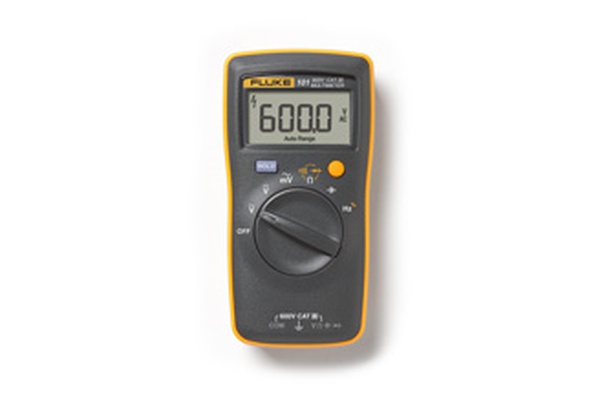

Fluke

101, Basic Digital Multimeter

RM 253.00

RM 271.00 -7%
  • Basic dc accuracy 0.5%
  • CAT III 600 V safety rated
  • Diode and continuity test with buzzer
  • Small lightweight design for one-handed use
  • Rugged, durable design
  • Automatic shutdown
  • Battery is easy to replace
  • 1 Year Warranty


Product Variation


Product Description

Designed for basic electrical tests, the Fluke 101 digital multimeter offers reliable measurements for residential/commercial electricians and heating and air conditioning technicians. This small, lightweight multimeter fits comfortably in your hand but is rugged enough to withstand daily use for years to come. When it comes to professional-grade affordable multimeters, the Fluke 101 digital multimeter is your best choice.

Electrical Specifications
V AC (40-500Hz) Range 600.0 mV
6.000 V
60.00 V
600.0 V
Resolution 0.1 mV
0.001 V
0.01 V
0.1 V
Accuracy 3.0%±3 digit
1.0%±3 digit
V DC Range 6.000 V
60.00 V
600.0 V
Resolution 0.001 V
0.01 V
0.1 V
Accuracy 0.5%±3 digit
Resistance Ohms Range 400.0 Ω
4.000 kΩ
40.00 kΩ
400.0 kΩ
4.000 MΩ
40.00 MΩ
Resolution 0.1 Ω
0.001 kΩ
0.01 kΩ
0.1 kΩ
0.001 MΩ
0.01 MΩ
Accuracy 0.5 %±3 digit
0.5 %±2 digit
0.5 %±2 digit
0.5 %±2 digit
0.5 %±2 digit
1.5%±3 digit
Capacitance Range 50.00 nF
500.0 nF
5.000 μF
50.00 μF
100.0 μF
Resolution 0.01 nF
0.1 nF
0.001 μF
0.01 μF
0.1 μF
Frequency
(10 Hz – 100 kHz)
Range 50.00 Hz
500.0 Hz
5.000 kHz
50.00 kHz
100.0 kHz
Resolution 0.01 Hz
0.1 Hz
0.001 kHz
0.01 kHz
0.1 kHz
Duty Cycle Range 0.1 % to 99.9 %
Resolution 0.1 %
General Specifications
CAT Rating CAT III 600 V
V AC Range 600.0 V
V DC Range 600.0 V
Ohms Range 40.00 MΩ
Auto Shutoff Y
Continuity Y
Capacitor 100.0 μF
Frequency 100.0 kHz
Hold No
Duty Cycle Yes
Size 130 mm x 65 mm x 27mm
Weight 160 g
Battery Two AAA
Warranty 1 year
Environmental Specifications
Operating Temperature 0 °C to +40 °C
Storage Temperature -30 °C to +60 °C
Operating Humidity Non condensing (<10 °C)
<=90% RH (at 10 °C to 30 °C)
<=75% RH (at 30 °C to 40 °C)
(Without Condensation)
Operating Humidity, 40 MΩ 80% RH 10 °C to 30 °C, 70% RH 30 °C to 40 °C
Operating Altitude 2,000 meters
Storage Altitude 12,000 meters
IP Rating IP 40 per IEC 60529
Vibration Requirements MIL-PRF-28800F, Class 2
Drop Test Requirements -10°C and 1 meter to surface, per IEC-61010-1, and Fluke SOP 39.1 for portable Hand-held equipment
Shipping container drop per Fluke SOP 39.
EMI, RFI, EMC Must meet all applicable requirements in
IEC/EN 61326-1
Absorption/Corrosion Per Fluke SOP 39.1
Temperature Coefficients Add 0.1 x specified accuracy for each degree C above 28 °C or below 18 ºC


Specifications
Country USA
IP Rating 40
Product Category Multimeter
