Fajar

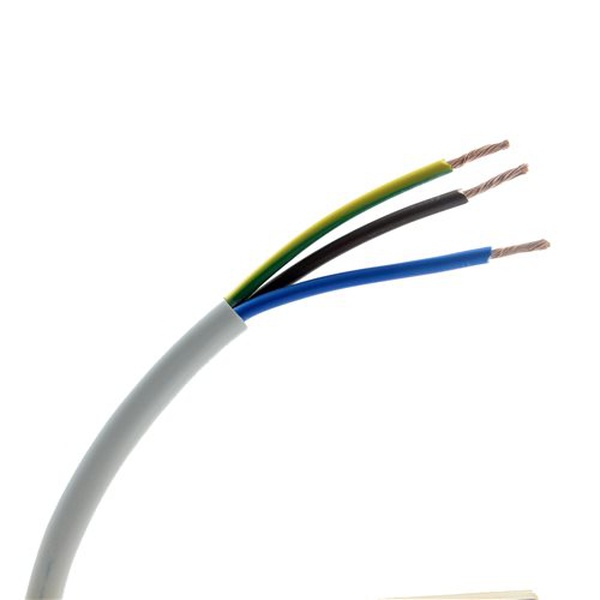

3 Core x 4.00mm (56/0.30), Flexible Cord Cables (1 meter)
RM 11.50
RM 14.00 -18%- Class 5 flexible plain annealed copper conductor
- PVC (Polyvinyl Chloride) Insulated
- PVC (Polyvinyl Chloride) Sheath
- 300/500 Rated Voltage
- SIRIM MS 140:1987 Approval
- Household appliances, power and lighting Applications
 |
|
|
Size of Conductor |
Thickness of Insulation |
Thickness of Sheath |
Approx. Overall Diameter |
Maximum Conductor Resistance at 20°C |
Minimum Insulation Resistance at 70°C |
||
|
Nominal Cross Sectional Area |
No./Diameter of Wires |
Lower Limit |
Upper Limit |
||||
|
mm² |
No./mm |
mm |
mm |
mm |
Ω/km |
MΩ.km |
|
|
2x0.75 |
2x24/0.20 |
0.60 |
0.80 |
5.60 |
7.00 |
26.0 |
0.013 |
|
2x0.75 |
2x24/0.20 |
0.60 |
0.80 |
3.80x6.00 |
5.20x7.60 |
26.0 |
0.011 |
|
2x0.75 |
2x24/0.20 |
0.60 |
0.80 |
6.00 |
7.60 |
26.0 |
0.011 |
|
2x1.00 |
2x32/0.20 |
0.60 |
0.80 |
6.40 |
8.00 |
19.5 |
0.010 |
|
2x1.25 |
2x40/0.20 |
0.70 |
0.80 |
7.00 |
8.60 |
15.6 |
0.010 |
|
2x1.50 |
2x30/0.25 |
0.70 |
0.80 |
7.40 |
9.00 |
13.3 |
0.010 |
|
2x2.50 |
2x50/0.25 |
0.80 |
1.00 |
8.90 |
11.00 |
7.98 |
0.009 |
|
3x0.75 |
3x24/0.20 |
0.60 |
0.80 |
6.40 |
8.00 |
26.0 |
0.011 |
|
3x1.00 |
3x32/0.20 |
0.60 |
0.80 |
6.80 |
8.40 |
19.5 |
0.010 |
|
3x1.25 |
3x40/0.20 |
0.70 |
0.90 |
7.60 |
9.40 |
15.6 |
0.010 |
|
3x1.50 |
3x30/0.25 |
0.70 |
0.90 |
8.00 |
9.80 |
13.3 |
0.010 |
|
3x2.50 |
3x50/0.25 |
0.80 |
1.10 |
9.60 |
12.00 |
7.98 |
0.009 |
|
4x0.75 |
4x24/0.20 |
0.60 |
0.80 |
6.80 |
8.60 |
26.0 |
0.011 |
|
4x1.00 |
4x32/0.20 |
0.60 |
0.90 |
7.60 |
9.40 |
19.5 |
0.010 |
|
4x1.50 |
4x30/0.25 |
0.70 |
1.00 |
9.00 |
11.00 |
13.3 |
0.010 |
|
4x2.50 |
4x50/0.25 |
0.80 |
1.10 |
10.50 |
13.00 |
7.98 |
0.009 |
|
5x0.75 |
5x24/0.20 |
0.60 |
0.90 |
7.40 |
9.60 |
26.0 |
0.011 |
|
5x1.00 |
5x32/0.20 |
0.60 |
0.90 |
8.30 |
10.00 |
19.5 |
0.010 |
|
5x1.50 |
5x30/0.25 |
0.70 |
1.10 |
10.00 |
12.00 |
13.3 |
0.010 |
|
5x2.50 |
5x50/0.25 |
0.80 |
1.20 |
11.50 |
14.00 |
7.98 |
0.009 |
Maximum Current Carrying Capacities for Flexible Cords MS 140 and BS 6500
|
Nominal Cross Sectional Area |
Number/Diameter of Wires |
Single Phase a.c. or d.c. |
Three Phase a.c. |
|
mm² |
No./mm |
Ampere |
Ampere |
|
0.5 |
16/0.20 |
3 |
3 |
|
0.75 |
24/0.20 |
6 |
6 |
|
1.0 |
32/0.20 |
10 |
10 |
|
1.25 |
40/0.20 |
13 |
- |
|
1.5 |
30/0.25 |
16 |
16 |
|
2.5 |
50/0.25 |
25 |
20 |
|
4.0 |
56/0.30 |
32 |
25 |
| Length (m) | 1 meter |
| Cable Color | Grey |
| Application | Air-Conditional & Water Heater |
| Water Resistance | No |
| Core | 3 Core |
| Cable Size (mm) | 4.0mm |
