Hager

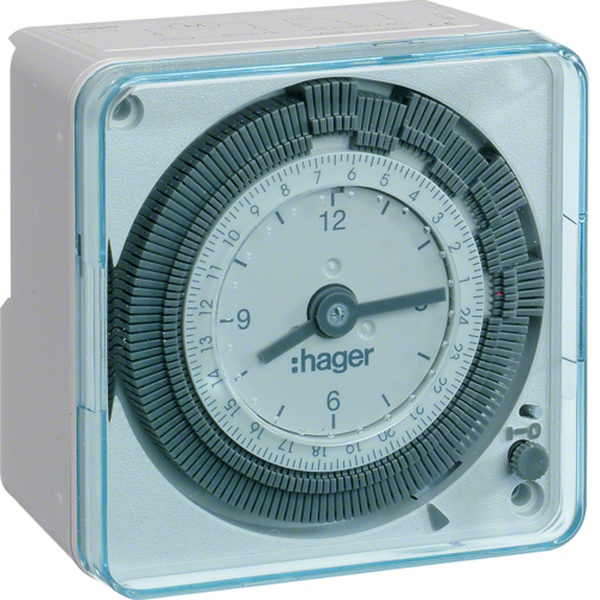

EH711, 16A 24Hours Timer Switch

RM 80.00

RM 100.00 -20%
  • Pre-set Time to Switch On/Off for the Electrical Appliances
  • Quartz, with supply failure reserve at 20°C, 200h after being connected for 120 h
  • Max. Power With Incandescent Lamp - 1000W
  • IP 30
  • 24hrs Operation Cycle
  • 1 Changeover Switch
  • According to Standard EN 60730-2-7


Product Variation


Product Description

Image result for hager eh711 instruction manual

Technical Characteristics
Type of programming: analog
Cycle: daily
Number of modules: 4
Supply failure reserve: 200 h
Number of contacts: 1
Type of contacts: 1 changeover
Shortest switching time: 10 mn
Fixing mode: surface-mounting
Summer / Winter time change: manual
Number of program steps: 72
Supply voltage: 230V AC
Breaking capacity: 16A 250V AC1
Frequency: 50 Hz
Max. power with incandescent lamps: 1000 W
Connection cross-sect. rigid cable: 1 / 6mm²
Connection cross-sect. flexible cable: 1 / 6mm²
Height of installed product: 72 mm
Width of installed product: 72 mm
Depth of installed product: 48,5 mm


Specifications
Type Analog
Power Source Corded Electric
Cycle 24 Hrs
Amp 16A
Voltage 230V
