SUL181d, 24hour Analogue Time Switch

RM 105.00

RM 150.00 -30%
  • Analogue time switch
  • 1 channel
  • Daily program
  • With power reserve (NiMH rechargeable battery)
  • 96 switching segments
  • Quartz controlled
  • Shortest switching time: 15 minutes
  • Clock hands for time display and in addition 12/24 hour recognition
  • Simple summer/winter time correction
  • Time can be changed clockwise or anti-clockwise
  • DuoFix spring terminals
  • For 2 conductors each
  • Wire or strand (with or without wire end sleeve)
  • Wire diameter: 0.5 - 2.5 mm²
  • Button for releasing plug-in connection


Product Variation


Product Description

Technical data
Connection example and scale drawings

Operating voltage 110 – 230 V AC
Frequency 50 – 60 Hz
Number of channels 1
Width 3 modules
Installation type DIN rail
Type of connection DuoFix spring terminals
Drive Quartz-controlled stepper motor
Program Daily program
Power reserve 200 hours approx. 100 hours at 110 V
Switching capacity at 250 V AC, cos φ = 1 16 A
Switching capacity at 250 V AC, cos φ = 0,6 4 A
Incandescent/halogen lamp load 1100 W
Shortest switching times 15 min
Programmable every 15 min
Time accuracy at 25 °C ≤ ± 1 s/day (quartz)
Type of contact Changeover contact
Switching output Potential-free and phase-independent
Number of switching segments 96
Stand-by consumption ~0,5 W
Capacity loss max. 1,3 W
Test approval VDE
Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
Type of protection IP 20
Protection class II according to EN 60 730-1
Ambient temperature -20 °C … +55 °C

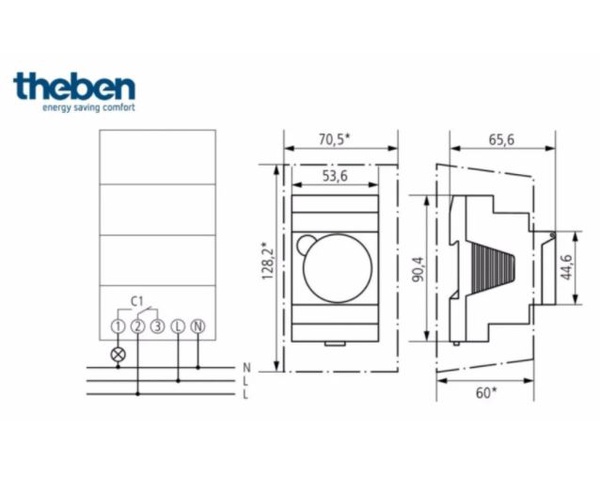

Connection example

SUL 181 d

Scale drawings

SUL 181 d


Specifications
Type Analog
Power Source Corded Electric
Cycle 24 Hrs
Amp 16A
Voltage 230V
